48v 100ah 200ah veleprodajni hišni hibridni napajalni stenski polnilni solarni litijev baterijski paket lifepo4

2023-08-18 06:01

Specifikacija

Št. modela	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
Napetost	48/51.2V	48/51.2V	48/51.2V
Zmogljivost	100Ah	150Ah	200Ah
Energija	5.12kwh	7.68kwh	10.24kwh

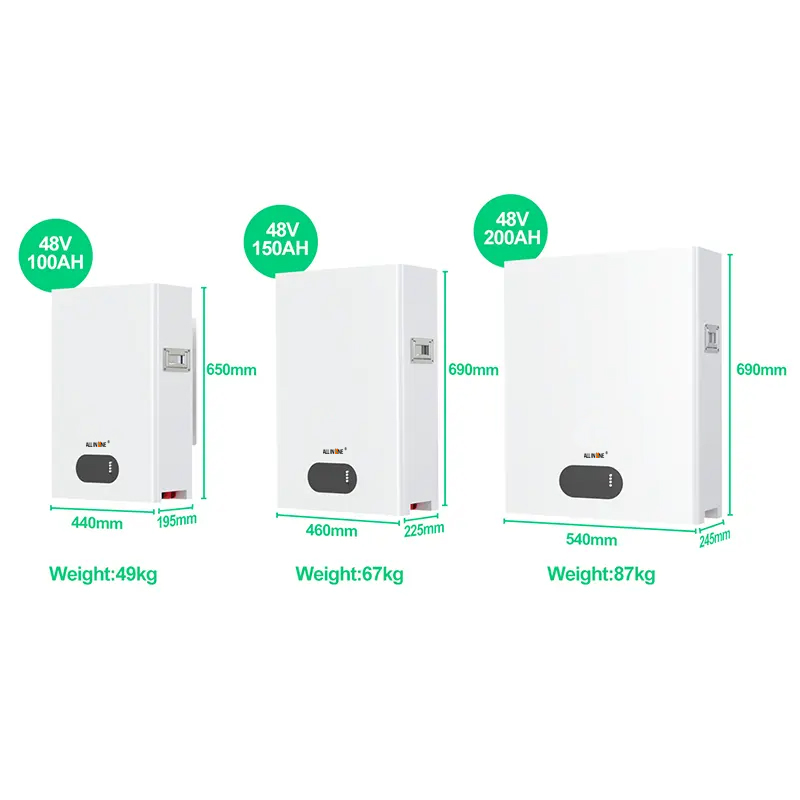

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Utež	49kg	67kg	87kg
Osnovni parametri
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Delovna temperatura	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Temperatura skladiščenja	0°C do 45°C pri 60+/-25 % relativni vlažnosti	0°C do 45°C pri 60+/-25 % relativni vlažnosti	0°C do 45°C pri 60+/-25 % relativni vlažnosti
Standardna litijeva baterija	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Največja moč	5120 W	7680W	10240W

Naša tovarna

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

Pogosta vprašanja

V: Ali ste trgovsko podjetje ali proizvajalec?
A: We are ALL IN ONE original factory.

V: Ali lahko imam vzorce za testiranje? In kakšen je rok za naročilo vzorcev?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

V: Ali nudite poprodajne storitve?
O: Da, garancija je 12 mesecev, če imamo v tem obdobju kakšne težave s kakovostjo, lahko pošljemo novo kot zamenjavo.

V: Ali sprejemate OEM / ODM?
O: Da, na voljo je.

V: Ali imate resnično zmogljivost baterije?
O: Vse naše baterijske celice s stopnjo A, 100% nove in resnične zmogljivosti.

V: Kakšne certifikate imate?
O: Lahko vam zagotovimo CE, ROHS, FCC, IEC62133, MSDS, UN38.3, če je vaša količina naročila velika.

V: Ali imate MOQ?
O: Brez omejitev. Majhno naročilo tudi dobrodošlo. Večja količina ima boljšo ceno, za vas bomo preverili najboljšo ceno.

V: Kakšen je vaš rok plačila?
O: Sprejemamo T / T, Paypal, Alibaba način plačila in tako naprej.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
