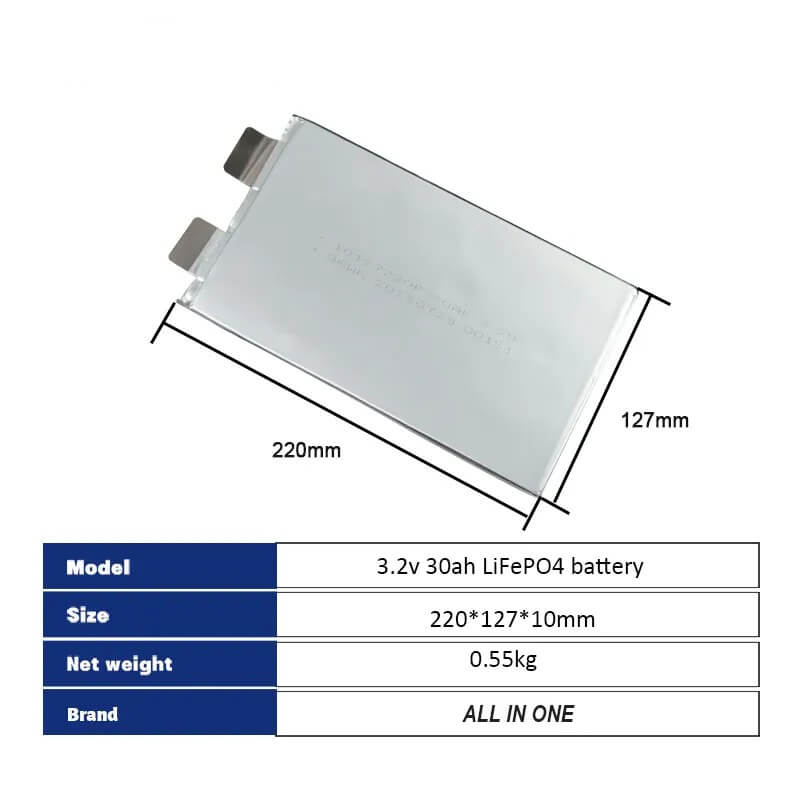

A Grade LiPO Battery Cells 3.2V 30Ah

2025-02-21 03:22

Specifikacija

Številka modela	3.2v 30ah
Tip baterije	Lithium ion polymer/lipo battery
Zmogljivost	30Ah/customize
Napetost	3.2V
With PCBA/Connector	Na voljo
Garancija	12 mesecev
OEM service	Na voljo
Paket	Industrial bulk tray package
Charging Working Temperature	0℃～60℃
Discharging Working Temperature	-30℃～60℃

Lastnosti
1.High energy density.
2. Long lifespan.
3. Low internal resistance.
4. Excellent performance in high and low temperature.
5.Good discharge and Charge Performance.

LiFePO4 and NMC(Li(NiCoMn)O2) are the major material. We have more 30 types of cells, and could make OEM battery pack from 12V-1000V, 10-1000ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,
E-scooter, E-tools, unmanned airplane, golf cart, fork lift, cleaning car, electric wheelchair, etc

Uporaba

ALL IN ONE Lifepo4 Battery Cell Catalog
Tip baterije	Zmogljivost	Velikost (mm)	Teža (g)	Charge/Discharge rate
Lifepo4 pouch battery	10 Ah	9.5*90*150	239	2C/5C
	10 Ah	8.0*68*270	266	4C/6C
	20AH	Hot sale 8.3*142*240	485	1C/1C
	20AH	6.5*160*227	465g	2C/3C
	20AH	9.2*126*236	492	1C/3C
	20AH	8.3*150*170	490	1C/3C
	25AH	8.5*137*232	560	2C/3C
	25AH	9.0*133*200	580g	1C/3C
	30AH	9.0*160*222	665	1C/3C
	30AH	9.2*170*240	690	1C/3C
	38AH	10*160*222	770	2C/3C
	40AH	8.5*188*236	1kg	1C/1C
	50AH	32*203*173	1.65kg	1C/1C
	50AH	32*173*128	1.35kg	1C/1C
	60AH	60*150*165	1.8kg	1C/1C
	80AH	60*150*200	2.7kg	1C/1C
	100AH	60*150*215	3.1kg	1C/1C

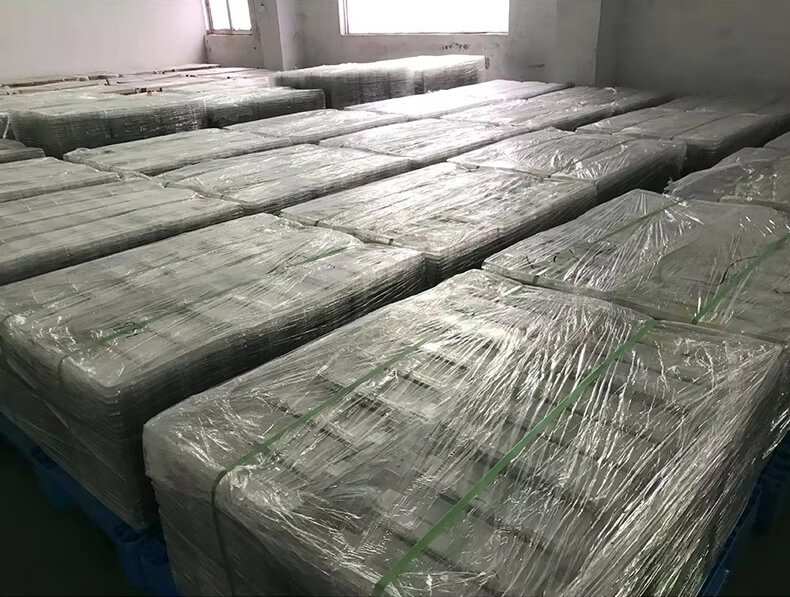

Naša tovarna

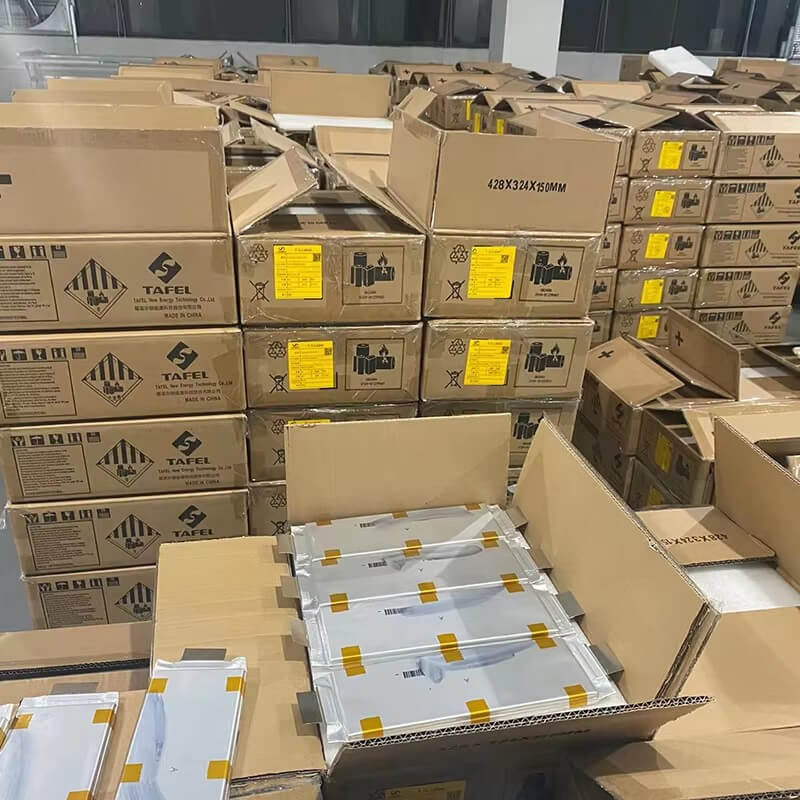

Pakiranje in dostava
