Baterija Prismatic Lifepo4 3,2 V 90 Ah

2023-06-13 02:44

Specifikacija

#	Postavka			Parameter	Opomba
1	Nominalna zmogljivost			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2V
3	AC Impedance Resistance(1KHz)			≤0,5 mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	Temperatura polnjenja			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	Temperatura praznjenja			-20°C~55°C
9	Temperatura skladiščenja		Short Term ( Within 1 month)	-20 ° C-45 ° C	N.A
			Long Term ( Within 1 year)	0 ° C ~ 35 ° C
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	Dimenzija		Premer	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36,7 ± 0,5 mm
14			High( Total)	200,5 ± 0,5 mm
15			High（ Subject）	195,5 ± 0,5 mm
16			Tabs Distance	67,0 ± 1,0 mm
17	Teža baterije			1994±50g

Attentions

• It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
• Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
• Do not short connect or install the battery with incorrect polarity at any time.
• Do not mix up with cells from different models or manufacturers.
• Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
• Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
• Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

Uporaba

Naša tovarna

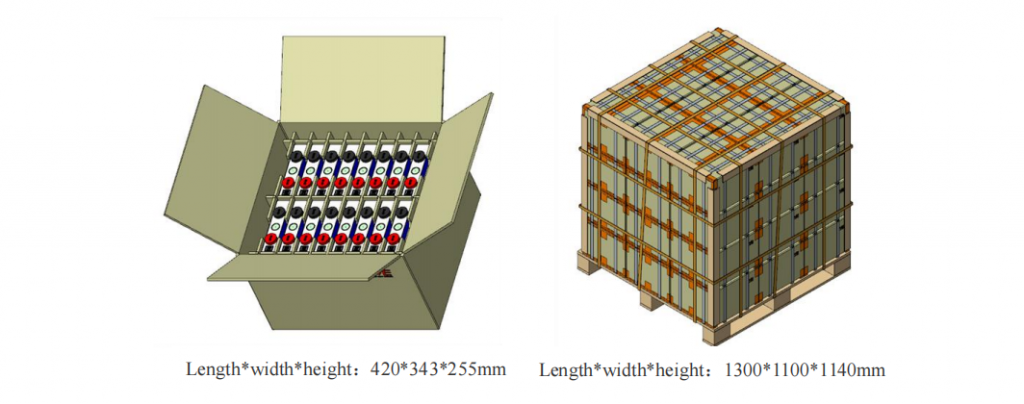

Pakiranje in dostava

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

Skladiščenje

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.

Pogosta vprašanja

Q1. Ali lahko naročim vzorec?
A. Da, pozdravljamo vzorčno naročilo za testiranje in preverjanje kakovosti.

Q2. Kaj pa čas vodenja?
A. Vzorec potrebuje 3 dni, masovni čas izdelave potrebuje 5-7 tednov, odvisno je od količine naročila.

Q3. Ali imate kakšno omejitev MOQ?
A. Da, imamo MOQ za množično proizvodnjo, odvisno je od različnih številk delov. Na voljo je vzorčno naročilo 1 ~ 10pcs. Na voljo je nizka MOQ, 1pc za preverjanje vzorcev.

Q4. Kako odpremite blago in koliko časa traja, da prispe?
A. Ponavadi traja 5-7 dni. Neobvezno je tudi letalsko in pomorsko pošiljanje.

Q5. Kako nadaljevati z naročilom?
A. Najprej nam sporočite vaše zahteve ali uporabo. Drugič, citiramo glede na vaše zahteve ali naše predloge. Tretji kupec potrdi vzorce in položi polog za uradno naročilo. Četrtič uredimo proizvodnjo.

Q6. Ali je v redu, če natisnem moj logotip na izdelku?
A. Da. Prosimo, da nas uradno obvestite pred našo proizvodnjo in najprej potrdite dizajn na podlagi našega vzorca.

V7. Katere certifikate imate?
O: Imamo CE / FCC / ROHS / UN38.3 / MSDS ... itd.

V8. Kako je z garancijo?
O: 3 leta garancije
