51,2 V 65 Ah voziček za golf lifepo4 litij-ionski paket globokih ciklov IP67

2024-06-28 03:25

Specifikacija

Model	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Nominalna napetost	51.2V	51.2V	51.2V	51.2V	76.8V
Nominalna zmogljivost	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58,4 V	58,4 V	58,4 V	58,4 V	87,6 V
Največji polnilni tok	100A	100A	60A	150A	100A
Največji tok neprekinjenega praznjenja	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Izklopna napetost	43,2V	43,2V	43,2V	43,2V	43,2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Temperatura polnjenja	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
Temperatura praznjenja	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃
Cycle Life (25℃, 0.5C, 100% DOD)	>6000	>6000	>6000	>6000	>6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Raven zaščite	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
Utež	48.3kg	49kg	32 kg	71kg	72.8kg
Communication Protocol	CAN/RS485	RS485	RS485	CAN/RS485	CAN/RS485



Ključne funkcije

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

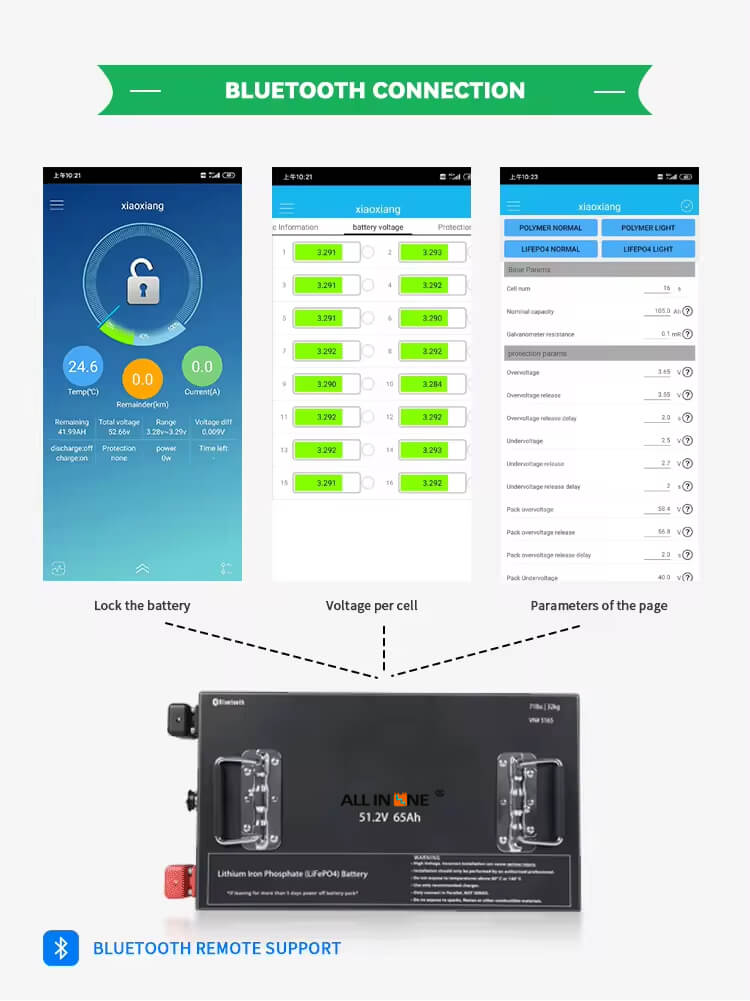

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

Obljubimo
1.Vsi izdelki bodo preizkušeno 100% pred odpremo, da zagotovite, da izdelek nima težav s kakovostjo.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



Uporaba

Naša tovarna

Pakiranje in dostava

Pogosta vprašanja

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

V2: Ali nudite poprodajne storitve?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

V3 Kakšna je prednost vašega podjetja?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

V4: Ali sprejemate OEM / ODM?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: Splošno rečeno, približno 25–30 dni, odvisno od različnih izdelkov po prevzemu plačila in potrditvi vzorcev.

Q6:Are your battery real capacity?
A6: Vse naše baterijske celice z razredom A, 100% nove in resnične zmogljivosti.

V7: Ali ste tovarna ali trgovsko podjetje?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

V8: Kakšna potrdila imate?
A8: Če je količina naročila velika, lahko zagotovimo CE, ROHS, FCC, IEC62133, MSDS, UN38.3.
